10 m Trilateral Stacker

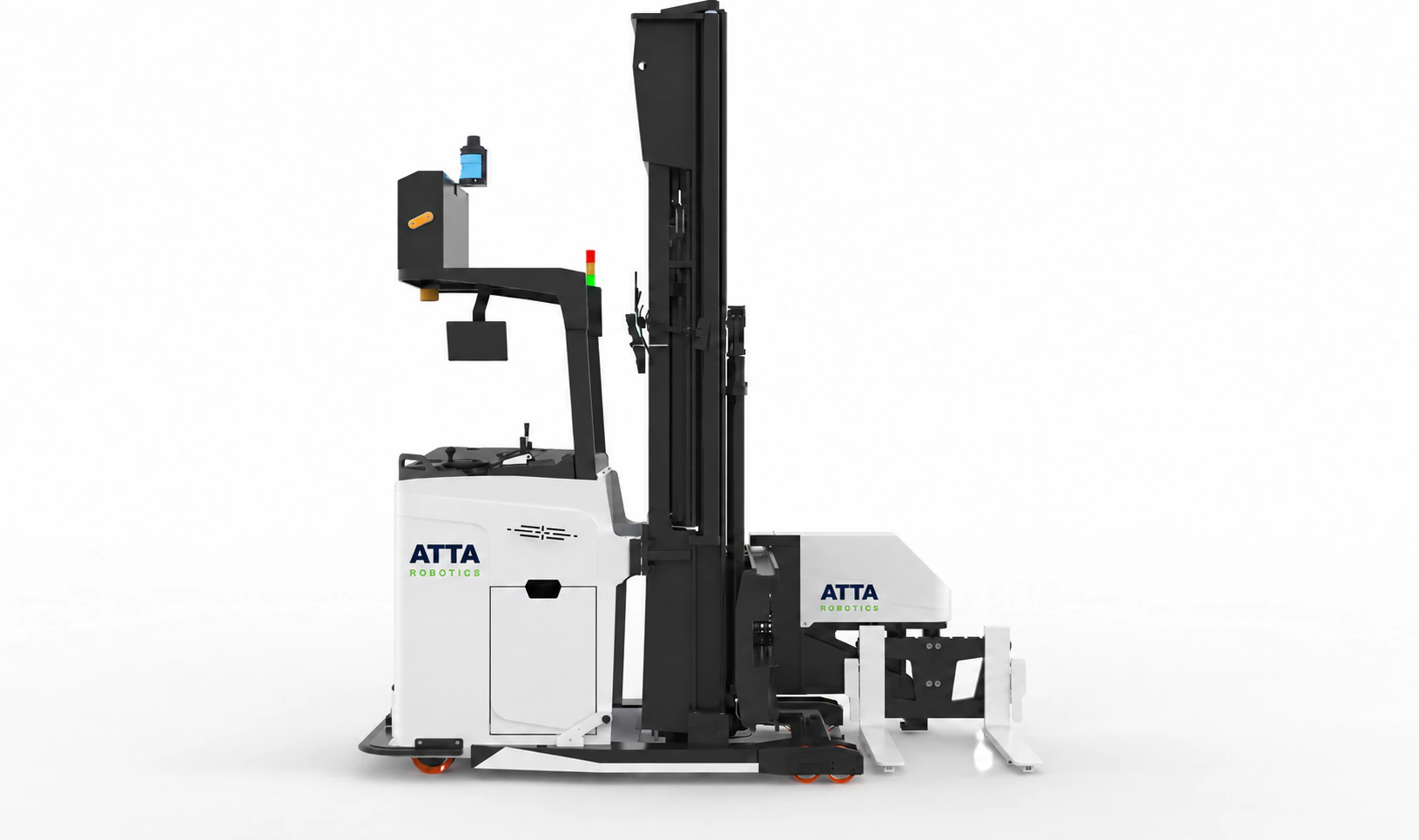

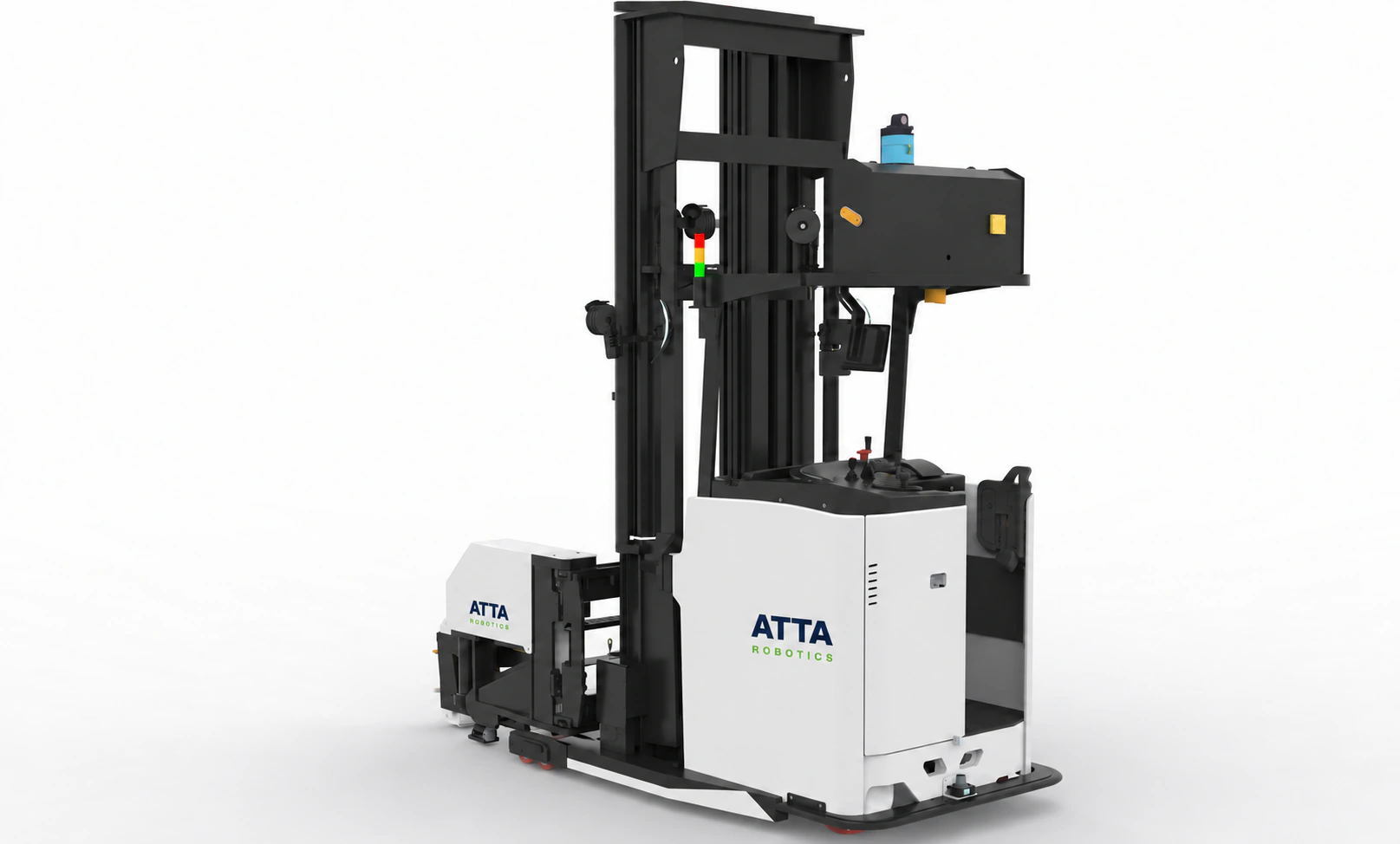

ATTA Colony Z10
Very-narrow-aisle density · 10 m
Colony Z10 is ATTA’s high-cube nest engine — three-way pallet access without turning, lift to 10 meters for maximum vertical density.
Payload Capacity
1,600 kg
Lift Height
10,000 mm
Min Aisle Width
1,800 mm
Built for the system
Ready for the swarm.
10 m lift for high-cube racking
Three-way fork positioning
No turning for pickup
Very narrow aisle density
Swarm-coordinated with Forager
Auto-charge windows
Full specifications
- Model
- Colony Z10
- Payload Capacity
- 1,600 kg
- Self Weight
- 6,185 kg
- Lift Height
- 10,000 mm
- Fork Spec
- 1,200 × 122 × 50 mm
- Min Aisle Width
- 1,800 mm
- Max Speed
- 2.0 m/s
- Battery
- LiFePO4 48V 600Ah
- Runtime
- 6–8 hours
- Access
- Trilateral — no turning required
- Navigation
- Multi-line LiDAR + ATTA Core SLAM
- Operating Temp
- −10°C to 45°C
- Safety Systems
- Multi-line LiDAR + Solid-state LiDAR + Anti-collision strips
